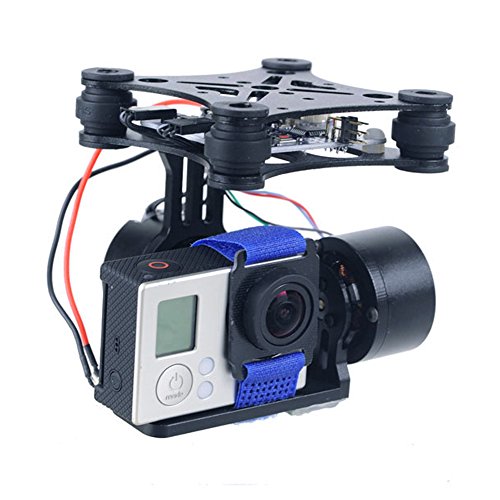

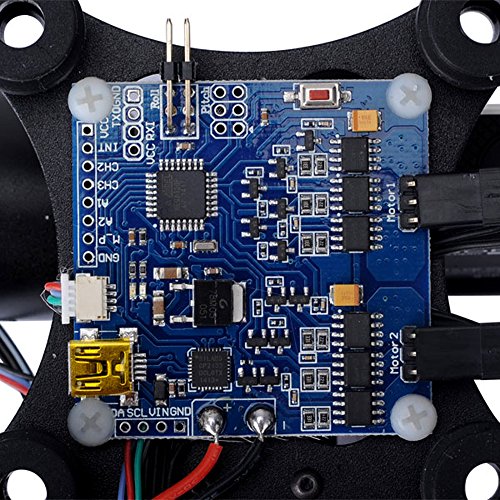

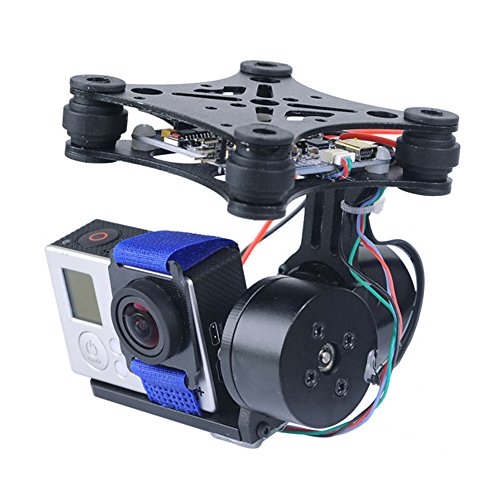

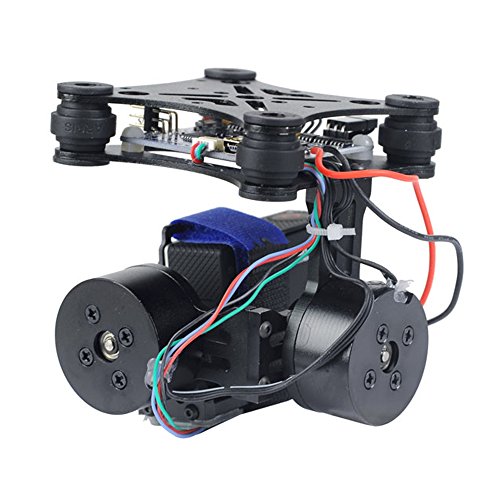

TARION® 2 Axis CNC Brushless Gimbal Camera Mount This CNC brushless gimbal camera mount with motor and controller is designed for DJI Phantom V1 V2 Walkera XA350. Compatible with GoPro Hero 3 2 1 well. Features & Specifications: Compatible with Gopro 3 2 1. Brushless motor direct drive. 230/300gram with/without Gopro hero 3. Size: 80*80*80mm (L*W*H). Mode: frame follow, fixed angle, controlled by receiver. Ready to use (default profile for Gopro 3). Weight: approx. 390g. Color: Black. 100% Brand new. How to Use (DJI Phantom example): 1.Assemble 4 anti-vibration rubber balls with top mounting plant, and fix the part to DJI phantom with screws. 2.Assemble with main gimbal with 4 rubber ball bottom side. 3.Install Gopro at camera position, and fasten with strap. 4.If you don't want control by DJI receiver, please jump to item #7, else read #5, #6. 5.Connect Roll signal to F1 signal on Naza FC & Pitch to F2 on Naza FC, if you want real time angle control. 6.Connect your Naza FC to computer, run Naza assistant, find advanced bar/Gimbal sub-bar/, change gimbal switch to OFF, save setting. 7.Keep Gopro balance, and then connect the gimbal balance plug to battery balance plug. 8.After 5-10mins, the gimbal initializing complete. relax the gimbal test the general function. 9.If something not working well, you can debug the gimbal with UGI, download address: http://www.basecamelectronics.com/files/SimpleBGC_GUI_2_40.zip. Package Includes: 1 x CNC Brushless Gimbal (Gopro NOT included) 1 x USB Cable 1 x Wiring and screws 1 x Original packing
