Question 1

What is the CFM, wattage, and decibel level?

Accepted Answer

To help alleviate confusion, wanted to chime in here to say the answer posted to this question is outdated from an OLD model.  This product has had two improvements since...  one is that the fan is now running on a 24v motor, and the CFM is now measured at 205 (improved from a 12v motor at 152cfm).  As for noise, I don't think the decibel rating has changed as it is still quiet.  The second improvement is much more recent (Decemenr 2018) and was made to the controller unit which now includes humidity control as well as temperature.

Question 2

Would it work to install this fan through the house wall so that I can bring the cool, outdoor evening air indoors without having the windows open.

Accepted Answer

I've had this idea for 20 years and just never got around to it.  First, this is about 200 cfm. Is 200 cfm enough to cause a temp difference. You would think so especially when the temp outside is 64 degrees and the temp inside is 75 degrees. I had a window fan and I was trying to draw cold air from one side of the house by setting the window fan to blow air outside on the otherside of the house. It was a double fan. I had all the windows open about 4 inches. I could not cool my house down. I personally don't want to go to sleep with all the windows in my house open. This little 4inch fan my work ok in one room provided you were circulating the air correctly.  Pumping air into a room creates positive pressure so you would have to vent that room to allow the air to leave that room at the same time. Two or three of these or maybe four depending on the size of the house could possibly allow one to circulate enough air to cause a significant temp change. If not then there are larger units. My plan is to use several 8 inch units placed in a central location in the attic and create vents in each room connected to the outside and then to the central fan which would exhaust to the outside or simply in the attic which is vented to the outside.

Question 3

Can this fan be used to draw radon gas out of my basement if exhasted outside?

Accepted Answer

I am using this for a radon fan.  The radon numbers were in the 60s before the fan. After installing it, we have dropped down to 2-7 range.  I'm going to add a second one and forgot get the binders to the same area of 0-2.

Question 4

Can the T4 be mounted vertically?

Accepted Answer

Yes.  While the instructions don't make it very clear, you definitely can.  Mine has been mounted vertically for two months and working perfectly.  I use it to cool an entertainment cabinet.  In the Product Description at the link below, it says, "The motor houses dual ball bearings rated at 67,000 hours which allows the duct fan unit to be mounted in any direction."

https://www.acinfinity.com/component-cooling/duct-fan-systems/cloudline-t4-quiet-inline-mixed-flow-duct-fan-system-4-inch/#product-description

ASIN	B06ZXWN3BG
Air Flow Capacity	205 Cubic Feet Per Minute
Best Sellers Rank	#43,902 in Tools & Home Improvement ( See Top 100 in Tools & Home Improvement ) #4,566 in HVAC
Blade Length	74 Inches
Blade Material	Plastic
Brand Name	AC Infinity
Collection Name	Hydroponic Ventilation Equipment
Color	Black
Connector Type	AC power plug
Control Method	Touch
Controller Type	App Control
Customer Reviews	4.7 4.7 out of 5 stars (6,874)
Electric Fan Design	Exhaust Fan
Finish Type	Painted or Powder Coated
Included Components	Cord
Indoor Outdoor Usage	Indoor
Is Product Cordless	No
Item Dimensions D x W x H	17.5D x 18.8W x 30.2H centimeters
Item Weight	0.01 Ounces
Main Power Connector Type	Standard Wall Plug
Manufacture Year	2020
Manufacturer	AC Infinity
Material	Plastic
Model Name	AI-CLT4
Model Number	AI-CLT4
Mounting Type	Linear Channel Mount
Noise Level	28 Decibels
Number of Blades	10
Number of Power Levels	8
Number of Speeds	10
Power Source	Corded Electric
Recommended Uses For Product	Cooling
Reusability	Rechargeable
Room Type	Kitchen
Special Features	App Operable, Remote Controlled, Water Resistant
Speed	2800 RPM
Standby Power Shutoff	Energy efficient
Style	Industrial
Switch Type	Remote Control
Theme	Ventilation and air conditioning
UPC	854759004785
Unit Count	1 Count
Voltage	120 Volts
Wattage	21 watts

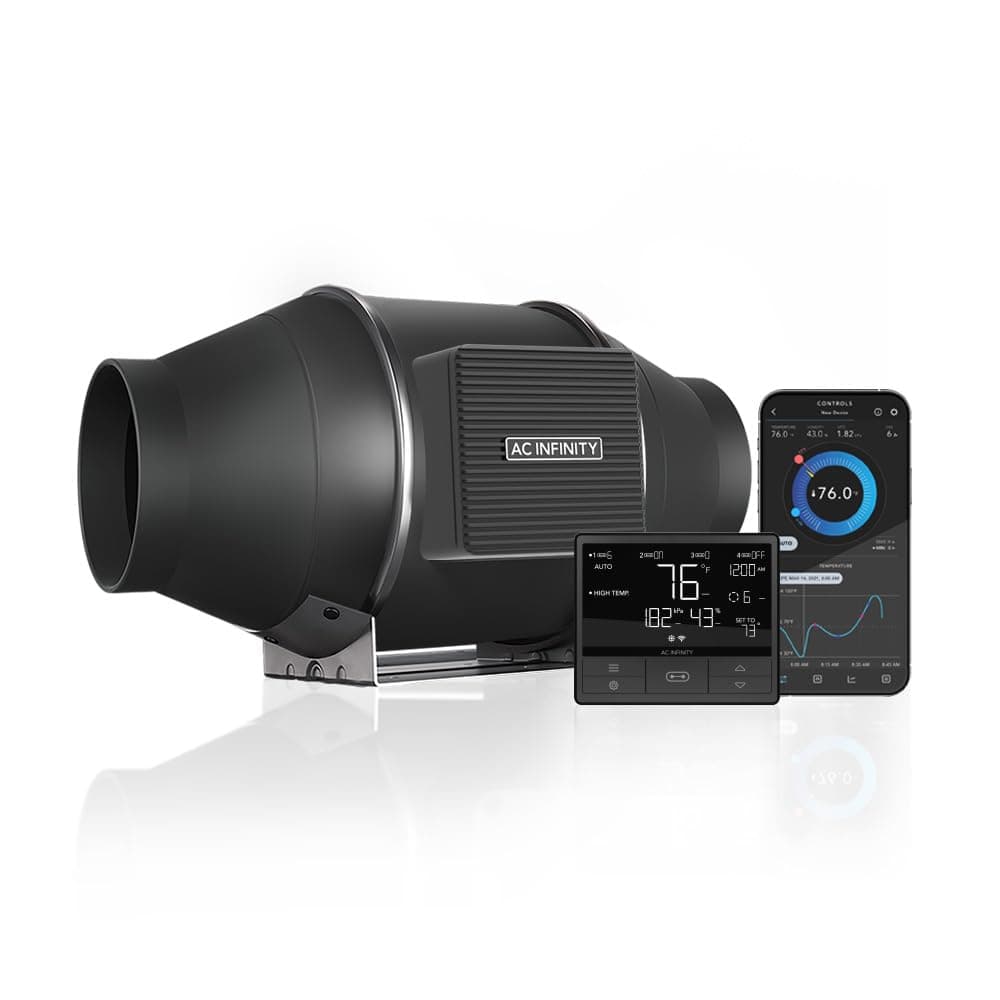

CLOUDLINE T4, Quiet 4” Inline Duct Fan with Temperature Humidity Controller, Bluetooth App - Ventilation Exhaust Fan for Heating Cooling Booster, Grow Tents, Hydroponics
